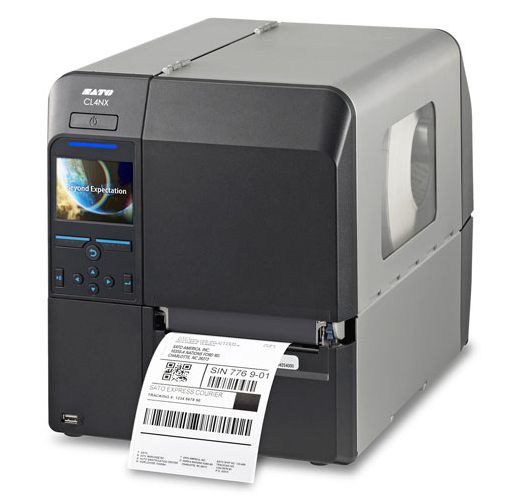

SATO CL4NX PLUS | 203 Dpi
INDUSTRIAL BARCODE SATO CL4NX PLUS thermal printer | 203 Dpi - DESCRIPTION
Raising the bar in industrial label printers
Optimise print precision, increase printing speeds and expand operational capability with the next-generation CL4NX Plus industrial printer from SATO.
The innovative label printer represents the cutting-edge evolution of SATO industrial thermal printers, which present a complement of consistent practical benefits, designed to integrate seamlessly into existing workflows.
The machine enables the reduction of labour costs and down time as a result of fewer media changes. as well as benefitting from format flexibility. With enhanced media options, the printer can reduce existing label sizes, saving costs and providing a significant boost to value chain sustainability.
A result of the Ceaseless Creativity of our global R&D network, the CL4NX Plus printer incorporates value-added features in a world class design to deliver a printing solution that goes beyond expectations.
| Printing method | Direct thermal/thermal transfer |
| Print resolution | 8 dots/mm (203 dpi) 12 dots/mm (305 dpi) 24 dots/mm (609 dpi) |
| Print width |
104mm (4.09") |
| Print speed | 14 ips (355 mm/sec) 14 ips (355 mm/sec) 6 ips (152 mm/sec) |
| Emulations | Auto detect - SZPL, SDPL, SIPL, STCL, SEPL |
| Label Type | Fan-fold or roll die-cut labels, plain paper, synthetic paper or continuous paper |
| Label width | 22 - 128 mm (0.87” - 5.04”) |
| Label Thickness | 0.060 - 0.268 mm (0.0024” - 0.011”) |
| Ribbon length | Max. Length: 600 m (1968.5’). 450 m (1476.4’) when ribbon width is 39.5 mm (1.55”) Max. Roll Diameter: 90 mm (3.5”), Ribbon width: 39.5 mm (1.55”) to 128 mm (5.04”) |
| Interfaces | USB 2.0 (Type A & B), Ethernet (IPv4/v6), RS232C, IEEE1284, EXT, NFC, External I/O |
